Garrett Turbo Kit Golf 6R / GTI / S3 8P / Leon – EA113 + EA888 2.0 TFSI – G-Series + Stainless Steel Thor Manifold

Description

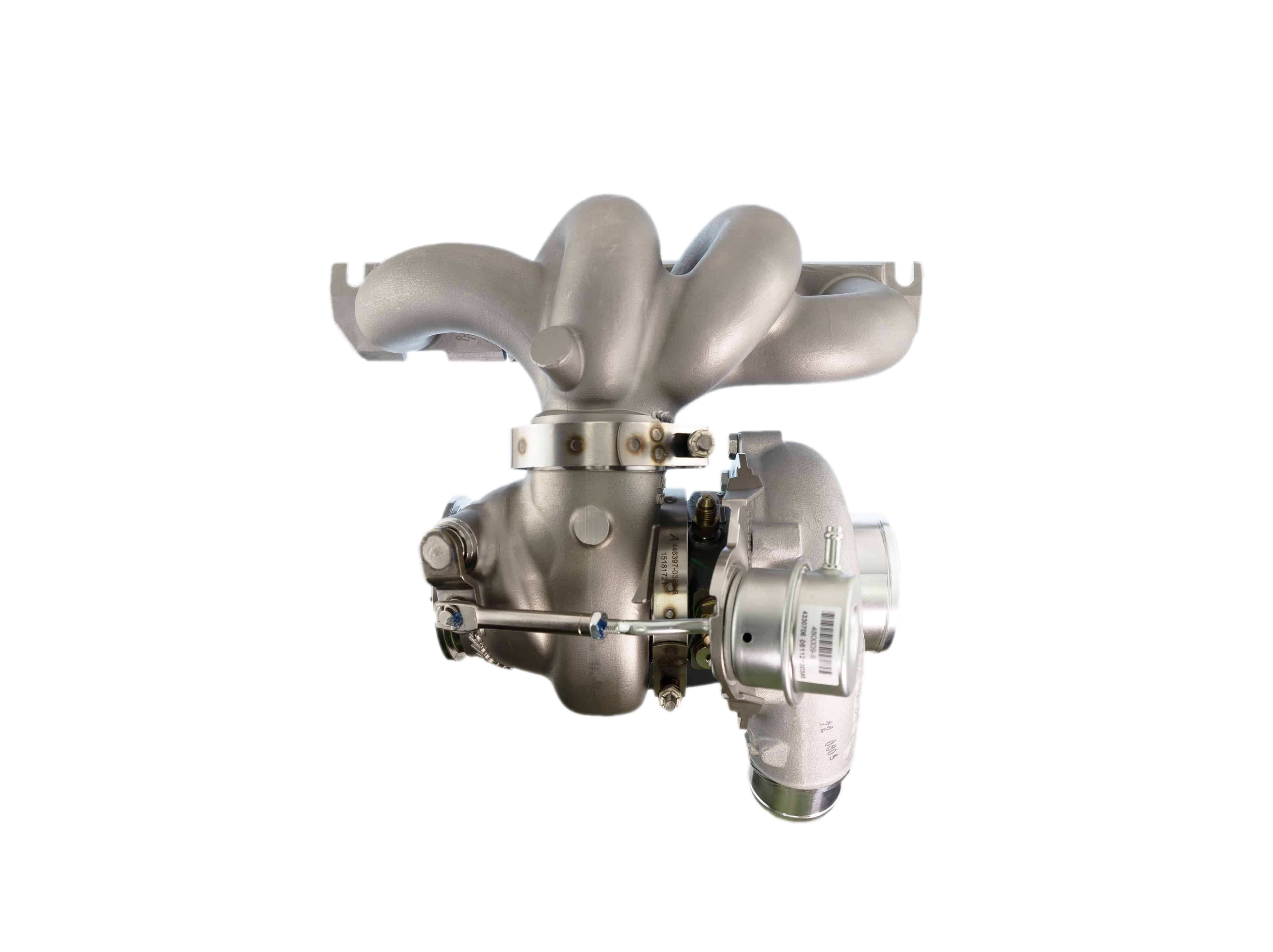

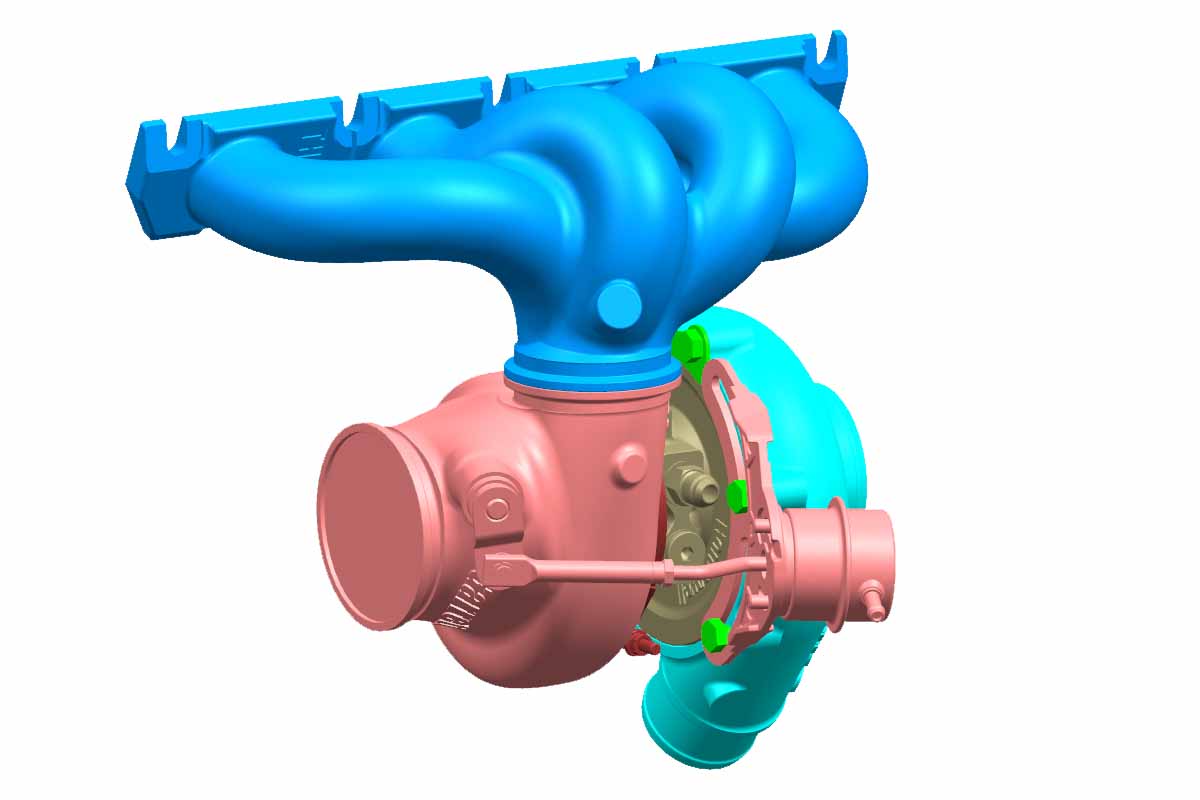

Lift your Golf 6R, GTI, Audi S3 8P or SEAT Leon with the EA113 or EA888 Gen2 2.0 TFSI engine to the next level with the Garrett G-Series Turbo KitThis kit combines the latest Garrett G-Series turbocharger with the extremely durable Stainless steel "Thor" exhaust manifoldDesigned for maximum performance, reliability, and efficiency – perfect for both street and intensive track applications.

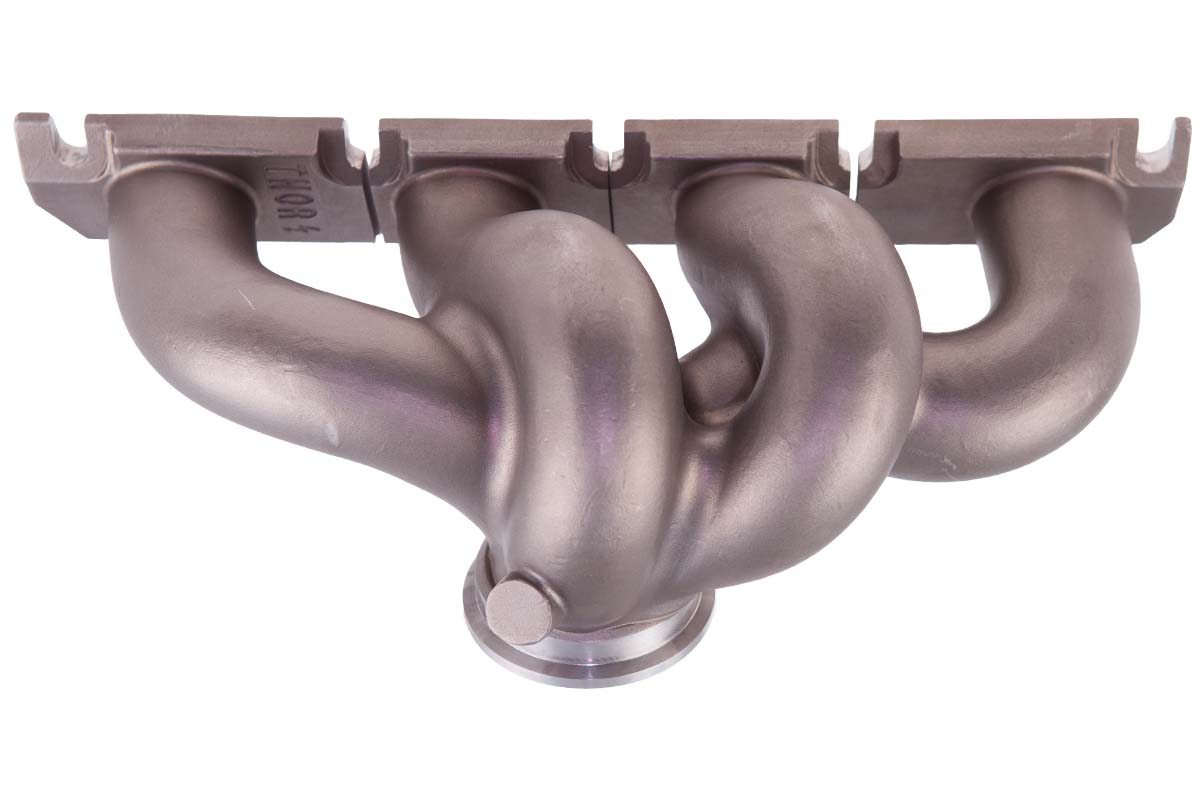

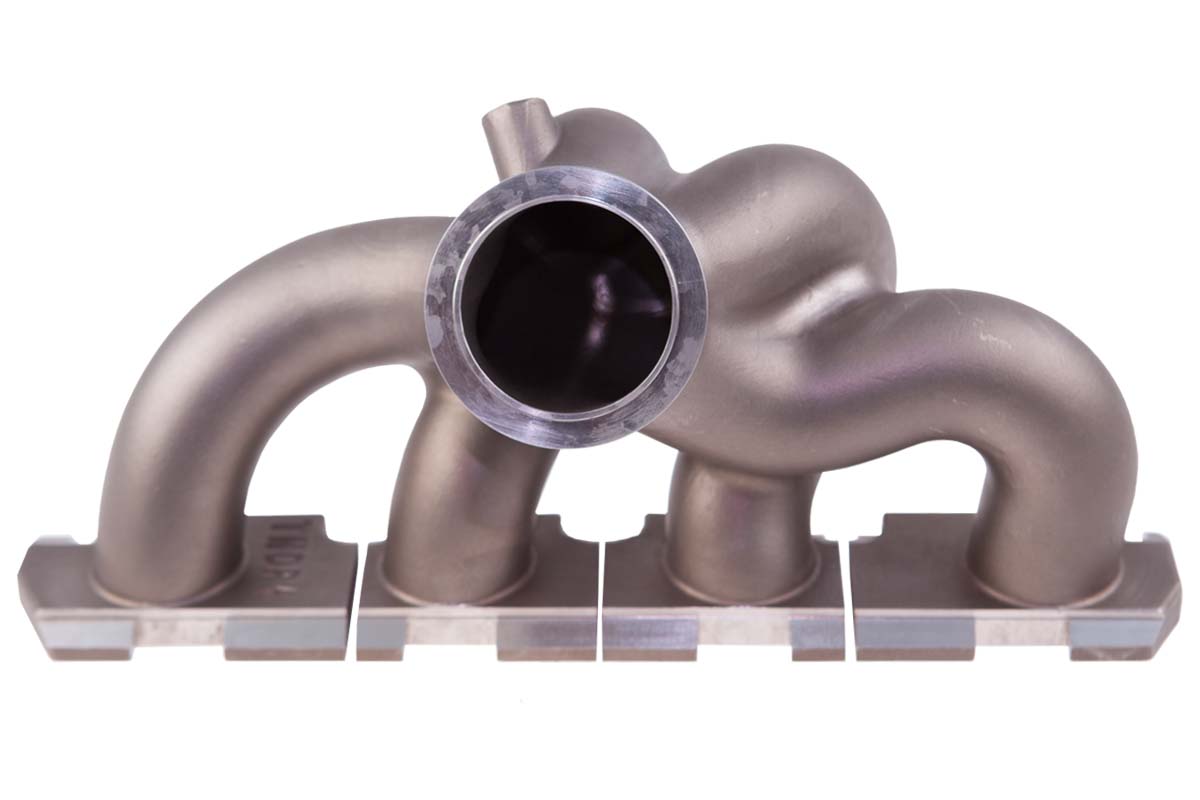

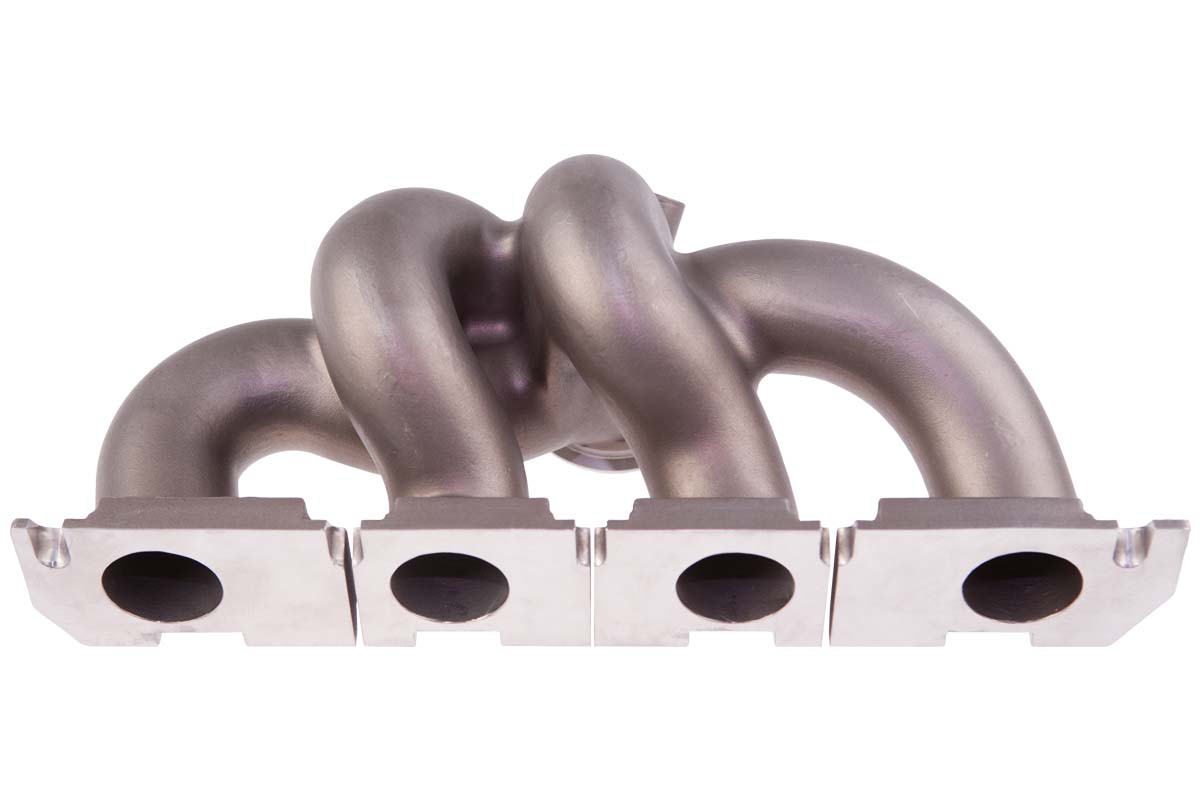

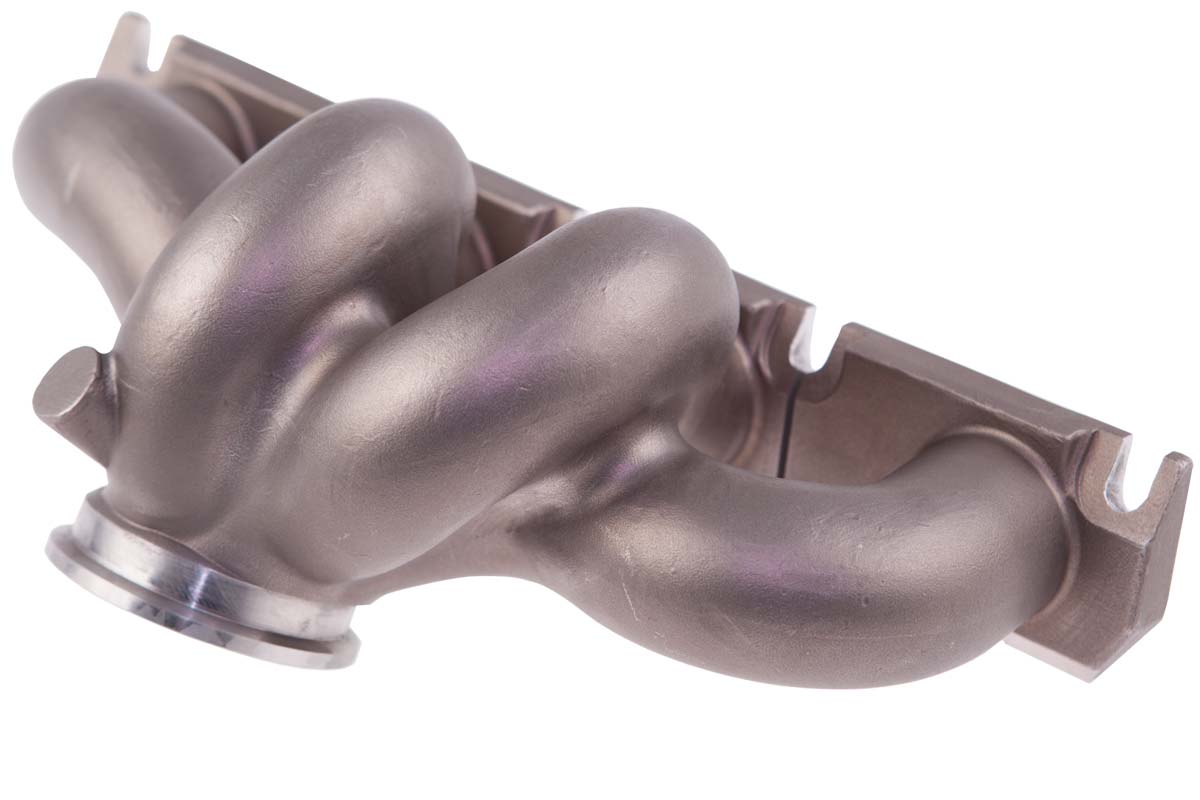

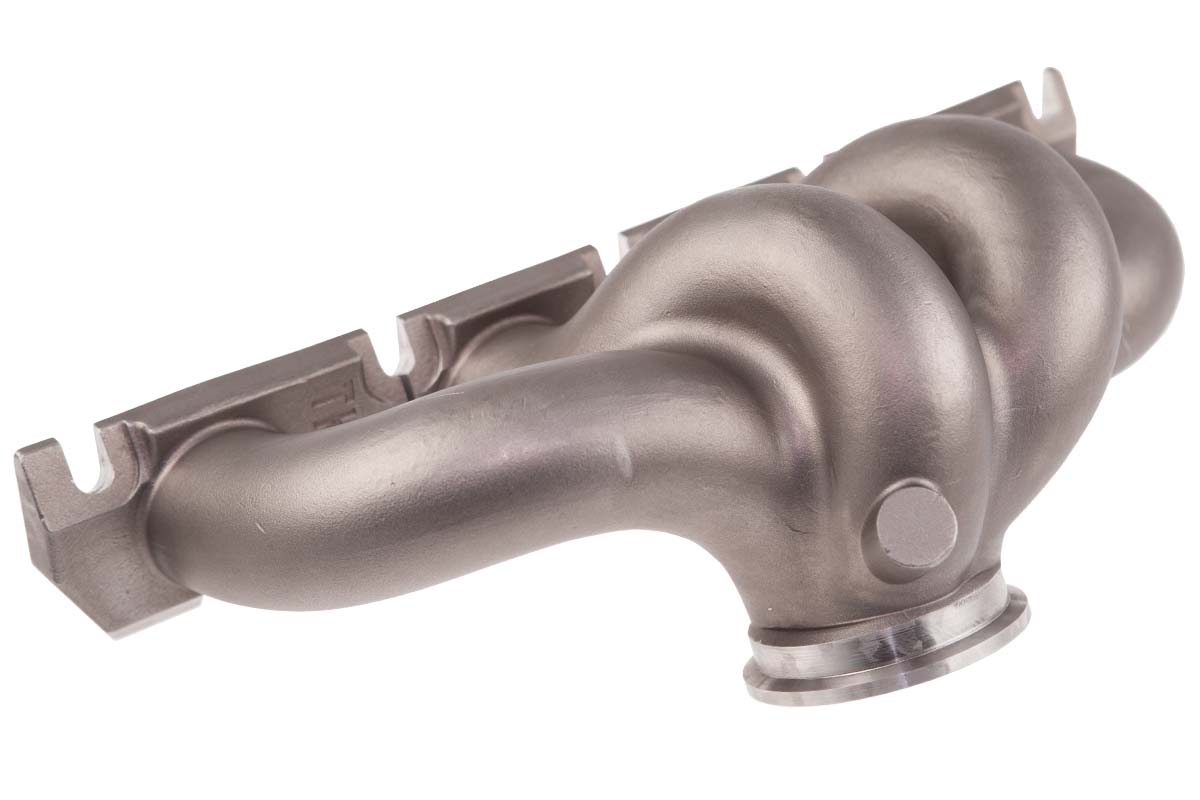

The advanced Thor stainless steel manifold can withstand temperatures up to 1050°C and complete TIG welded with optimized gas flow channels. Compared to standard cast iron manifolds, this design offers significantly more flow, heat resistance and durability. Specifically developed for the Garrett G25, G30 and G35 Turbos with integrated internal wastegate for compact and reliable mounting.

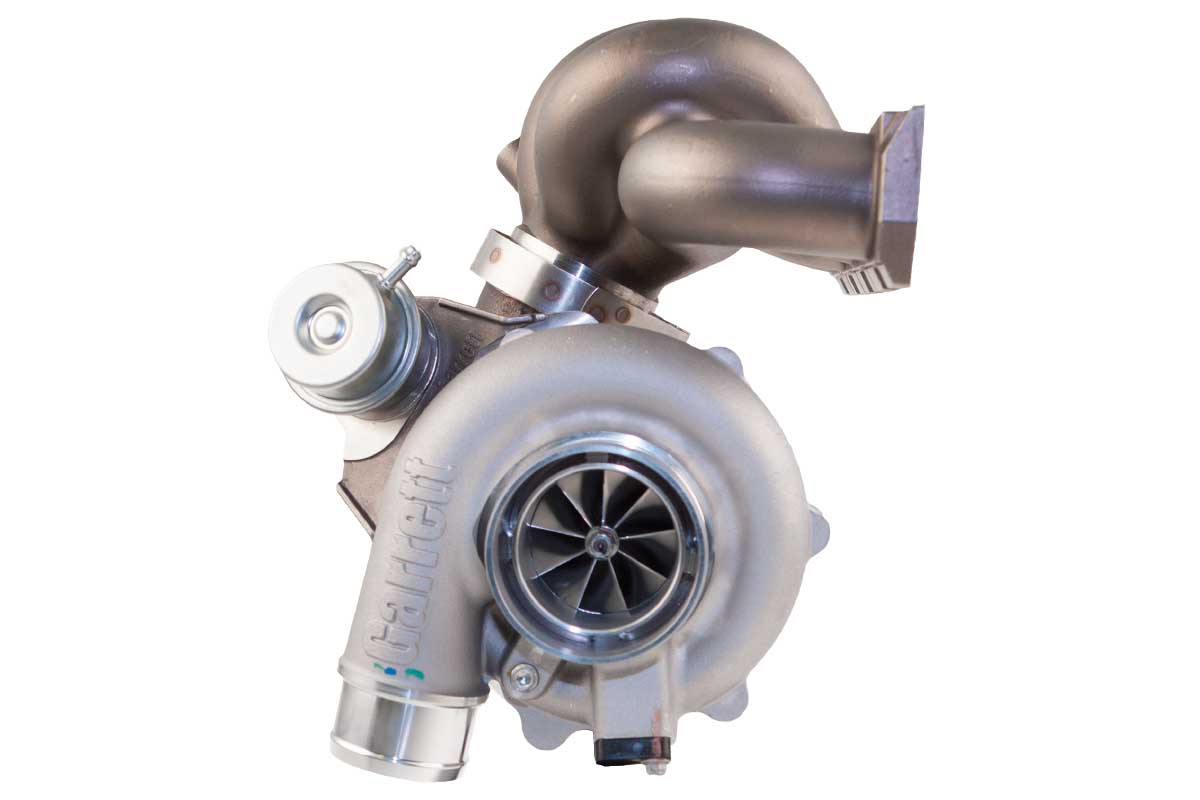

The Garrett G-Series turbos utilize MAR turbine wheels and Stainless steel turbine housings that can handle temperatures up to 1050°C – significantly higher than older EFR systems (max. 950°C). This allows you to use the maximum potential of your engine, ideal for stage 3+ builds and motorsportThis kit is suitable for both 2WD and 4WD versions.

Advantages

• Fit guarantee: seamless fit for EA113 & EA888 Gen2 2.0 TFSI
• Suitable for 2WD and 4WD (Golf GTI, R, S3, Leon Cupra, Octavia vRS, etc.)
• 1050°C heat-resistant stainless steel manifold for maximum durability
• Optimized gas flow for faster spooling and higher efficiency
• G-Series turbos with MAR turbine and internal wastegate
• Motorsport-worthy design, tested under extreme conditions
• Sensor port available for temperature or back pressure measurement
• Visual top design: show quality finish

Technical specifications

• Material: Stainless steel 1050°C heat resistant
• Design: Flow-optimized Thor manifold
• Turbo options: Garrett G25 / G30 / G35
• Connection: internal wastegate
• Application: EA113 + EA888 Gen2 2.0 TFSI

Compatibility

Compatible with the following vehicles and engine codes:

• Audi A3 (8P) – AXX, BWA, BWE, BPY
• Audi S3 (8P) – BHZ, CDL, CDLA, CDLB
• Audi TT / TTS – AXX, BWA, BWE, BPY, CDLA, CDLB
• Audi A6 (C6) – BPJ
• Volkswagen Golf Mk5 GTI / Edition 30 / Pirelli – AXX, BWA, BYD
• Volkswagen Golf Mk6 GTI / Edition 35 – CDL
• Volkswagen Golf R – CDL, CDLF
• Volkswagen Scirocco R – CDL, CDLA
• Volkswagen Jetta Mk5 GLI – AXX, BWA
• Volkswagen Passat (B6) – AXX, BWA
• Volkswagen Polo R WRC – CDL
• SEAT Leon / FR / Cupra / Cupra R – AXX, BWA, BWJ, CDLA
• SEAT Altea / Toledo / Exeo – AXX, BWA
• Škoda Octavia vRS (1Z) – AXX, BWA
• KTM X-BOW – 177 kW / 210 kW / 220 kW versions

Contents

• Garrett G-Series Turbocharger (G25 / G30 / G35)
• Thor stainless steel exhaust manifold
• Mounting material

NB

• This manifold is Sold exclusively with Garrett G-Series turbocharger.
• Not suitable for EA888 Gen3 (MQB) engines.

Frequently Asked Questions

Is this system suitable for 2WD and 4WD?
Yes, the kit is fully compatible with both front-wheel drive (GTI, Cupra, vRS) and all-wheel drive models (Golf R, S3, Leon 4).

What makes the Garrett G-Series better than older turbos?
The G-Series utilizes advanced MAR turbine wheels and aerodynamic compressor wheels, resulting in faster spooling and higher efficiency at high boost pressures.

Can I use this system on my standard motorcycle?
Yes, but optimal performance is achieved with strengthened internal engine components and modified ECU software.

What is the advantage of the stainless steel Thor manifold?
The Thor manifold can withstand extremely high temperatures and ensures an even gas flow, which allows the turbo to spool up faster and improves performance.

Item number: TT11141
