Turbo Oil & Water Line Kit – 2.0 TFSI EA113 – Garrett G-Series Upgrade

Description

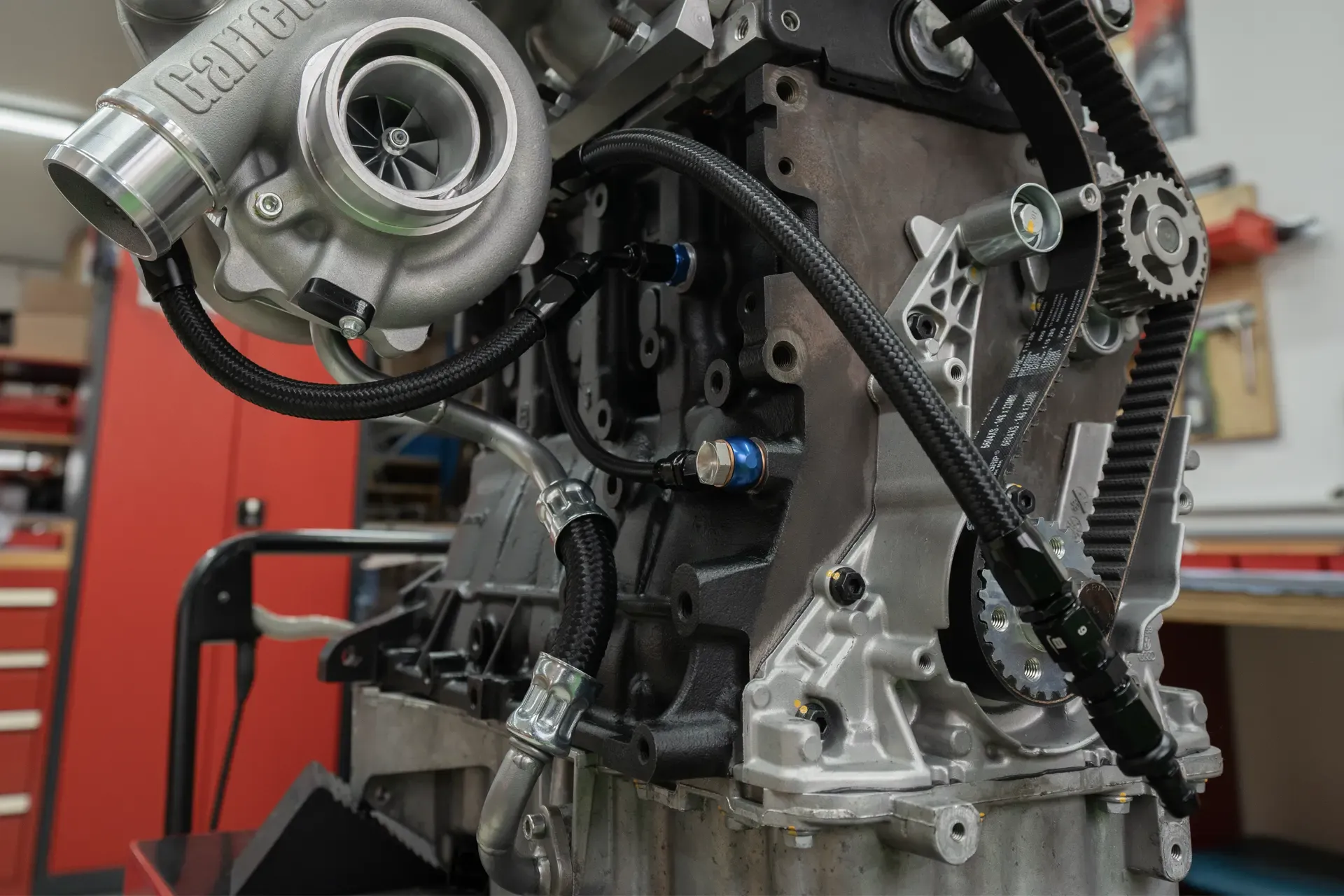

The BarTek Turbo Oil & Water Line Kit has been specially developed for mounting a Garrett G-Series upgraded turbo on the 2.0L TFSI EA113 engineThis high-quality kit includes all the lines and connections needed for correct and reliable turbo installation, including oil supply, oil return, and water circulation.

The complete kit consists of Dash PTFE hoses With aluminum connections and a heat shield, it's designed for maximum heat and pressure resistance. All necessary fittings, seals, and adapters are included, ensuring a smooth and professional installation. Perfect for high-performance applications or motorsports.

Advantages

• Complete fit for 2.0 TFSI EA113 engines
• Complete plug & play package – no additional parts required

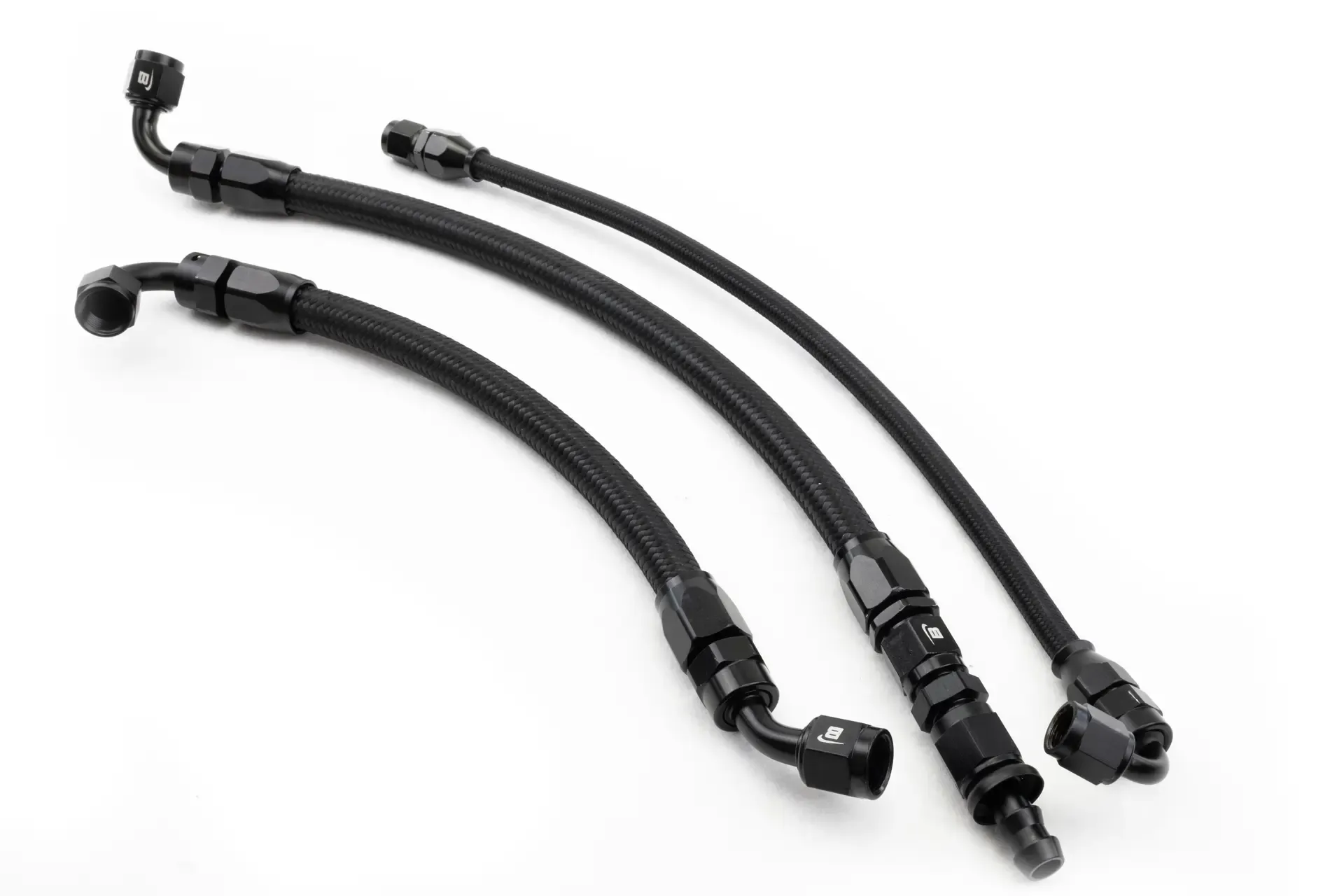

• Dash 4 & Dash 6 PTFE hoses with aluminum connections
• High pressure and heat resistance up to 260°C
• Stainless steel and aluminum fittings for maximum durability
• Heat shell included on the oil line
• Suitable for Garrett G25, G30 and G35 turbos
• Designed for reliable oil and water flow under high load

Technical specifications

Oil supply line:
• Banjo bolt M12x1.5
• 12 mm sealing ring (2x)
• 12 mm Banjo Dash 4 PTFE
• 120° Dash 4 connection
• 0° Dash 4 connection
• 50 cm Dash 4 PTFE hose

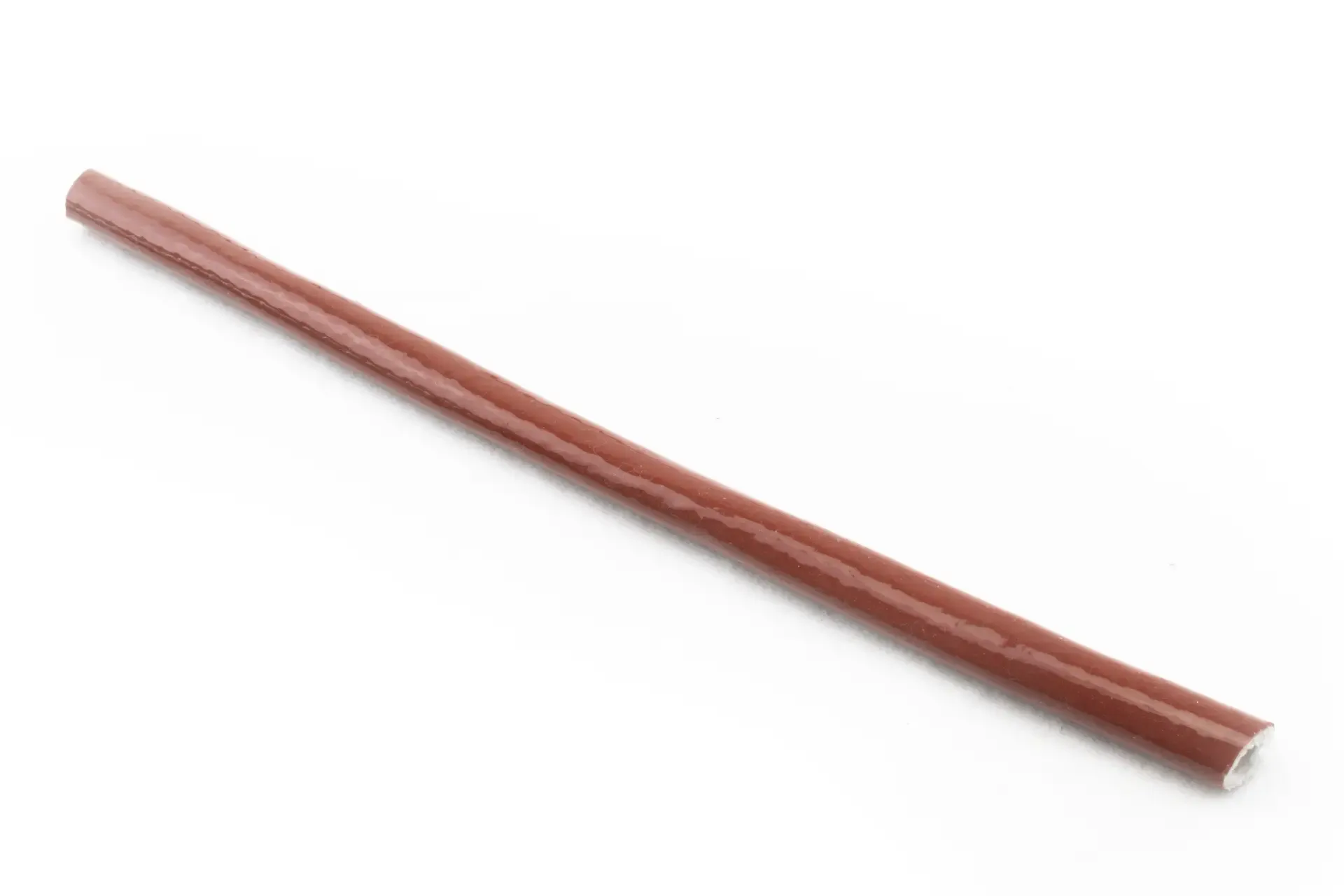

• Includes heat shield

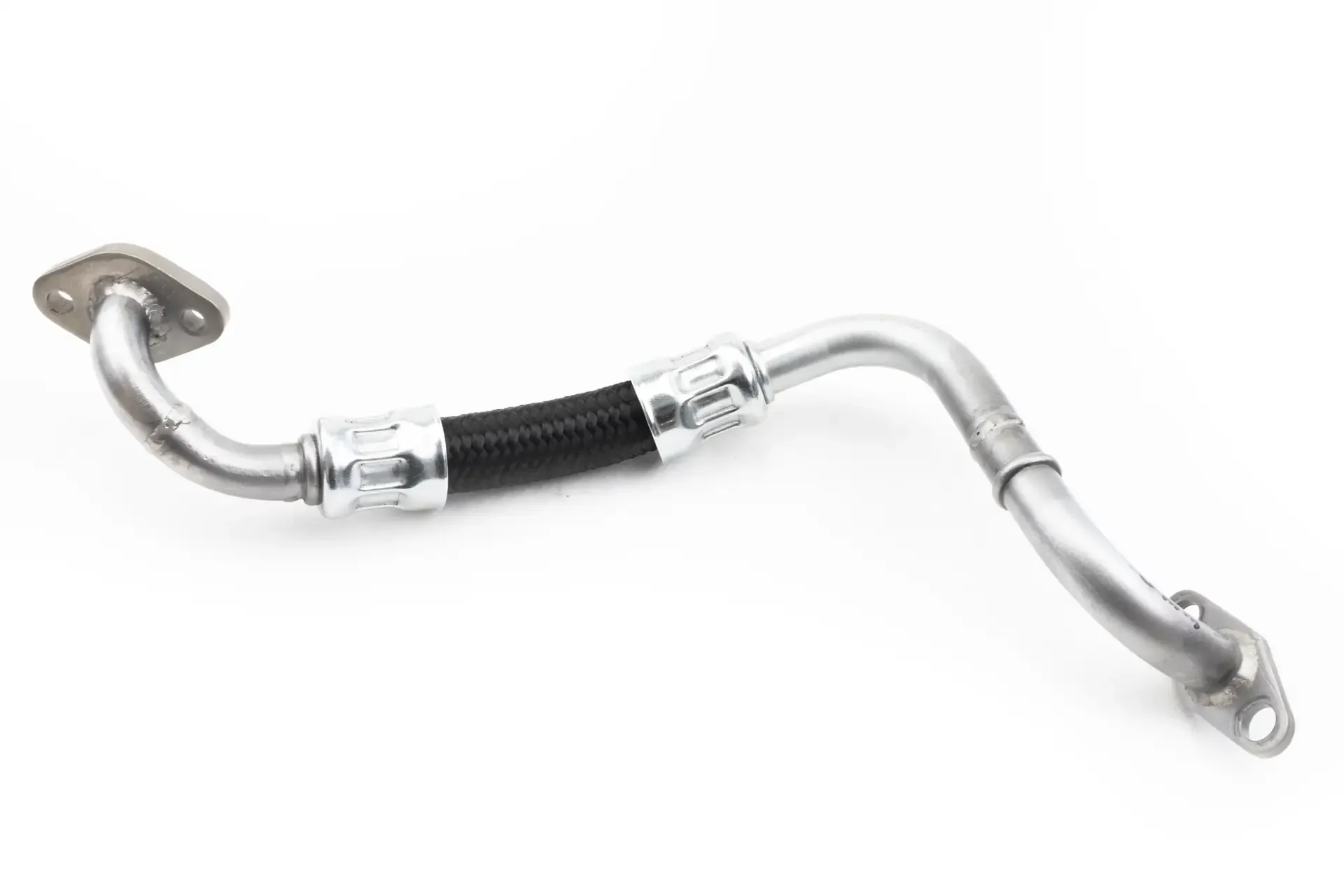

Oil return line:
• Pre-assembled and ready to install

Water pipe to engine block:
• Spigot M14x1.5 to Dash 6
• 14 mm aluminum sealing ring
• 1 m Dash 6 hose
• 45° Dash 6 connection
• 90° Dash 6 connection

Water pipe to hose:
• 90° Dash 6 connection
• 0° Dash 6 connection
• Dash 6 coupling
• Push-on Dash 6 connection

Compatibility

• Engine: 2.0L TFSI EA113 (AXX, BWA, BPY, BYD, BWJ, BHZ, CDL)
• Turbo: Garrett G-Series (G25, G30, G35)
• Vehicles: Golf 5 GTI / Edition 30, Golf 6R, Audi S3 8P, TT / TTS, Leon Cupra / FR, Octavia vRS, Jetta GLI, Scirocco R, Passat B6, etc.

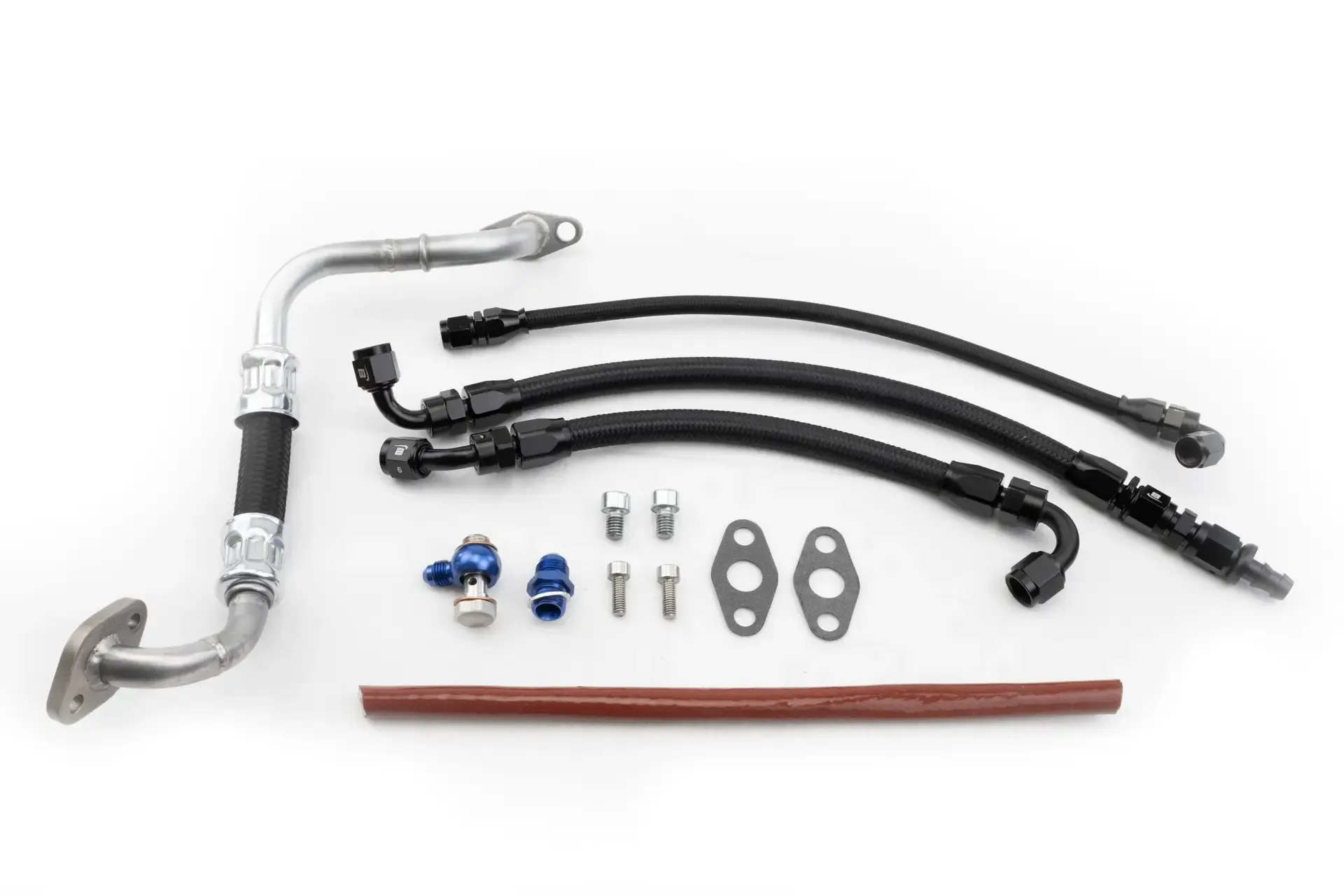

Contents

• Oil supply line + heat shield
• Oil return line (pre-assembled)
• Water line to engine block (Dash 6)
• Water line to coolant hose (Dash 6)

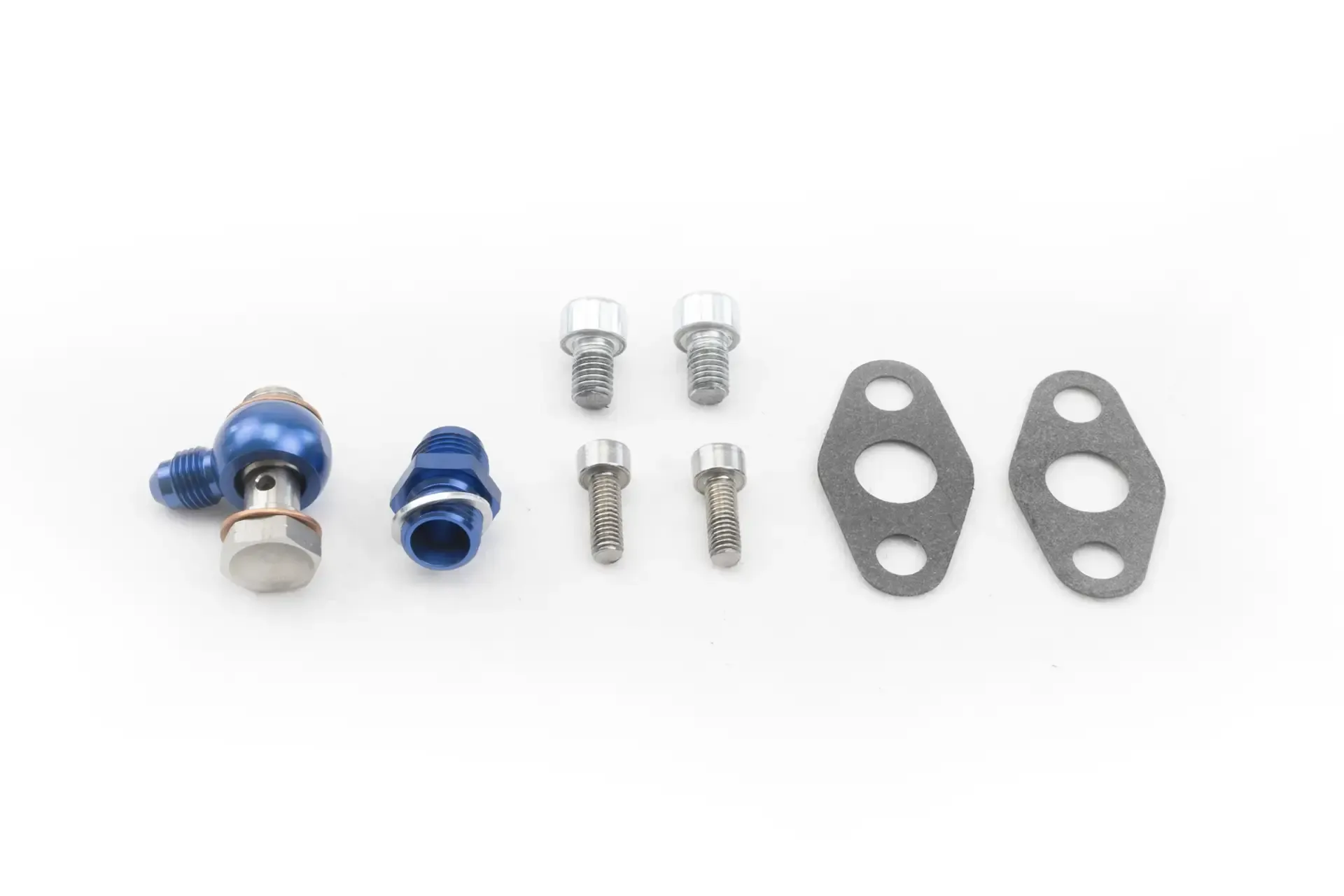

• Sealing rings, fittings and mounting materials

Frequently Asked Questions

Can this kit be installed directly?
Yes, the kit is completely plug & play and includes all connections necessary for mounting on the 2.0 TFSI EA113 engine.

Will this fit my original turbo?
No, this kit is specifically designed for Garrett G-Series upgrade turbos.

Can I use this set for track use?
Yes, the PTFE Dash lines and aluminum fittings are designed for high pressures and temperatures – ideal for track and tuning applications.

Are all parts included?
Yes, the kit comes complete with all pipes, fittings, sealing rings and heat shield for direct mounting.

Item number: TT11579
