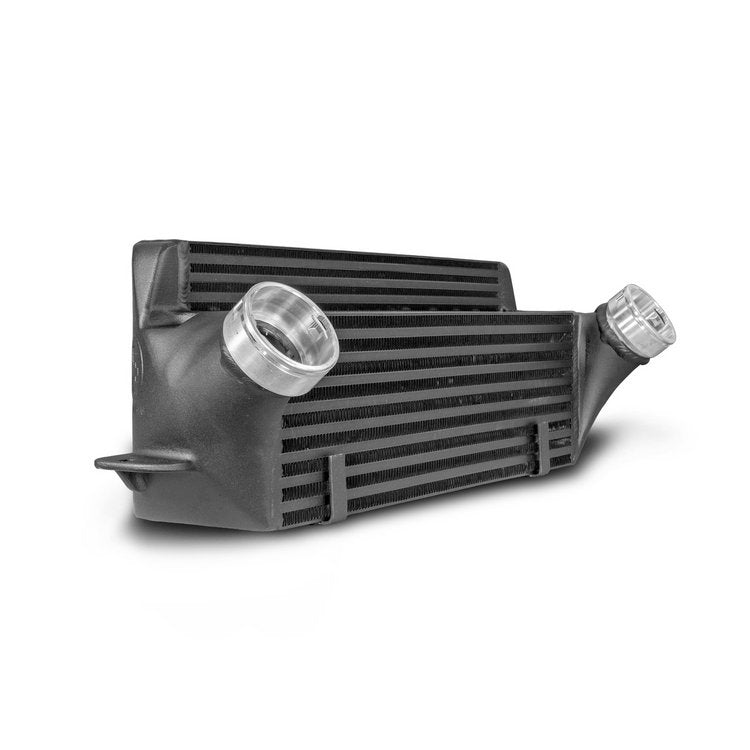

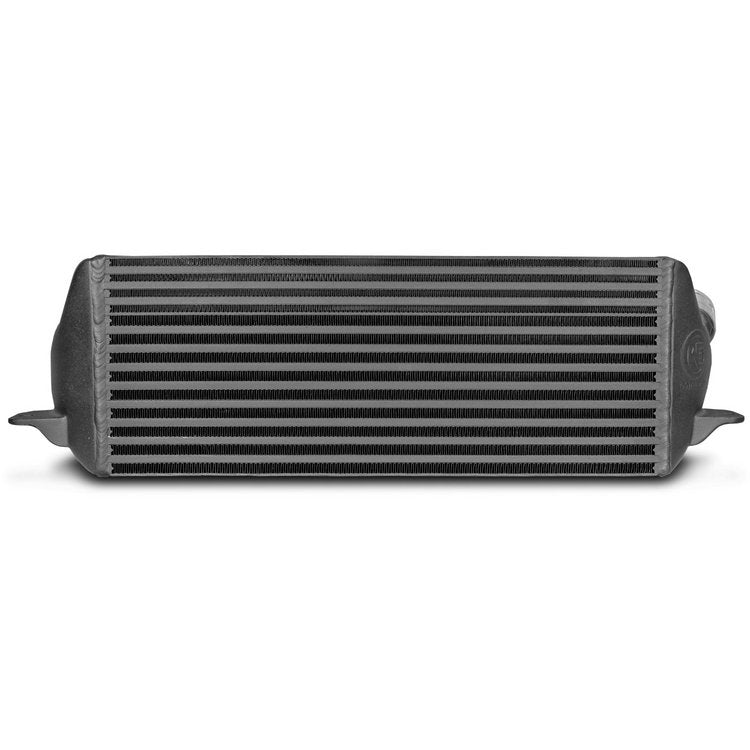

Wagner performance Intercooler kit for BMW 116d E81, E87 and E90

The Wagner performance Intercooler kit has been developed for the BMW 116d and other models in the 1 Series, 3 Series and X1 ranges fitted with the N47D20 (TÜ2) and M47 engines, and offers maximum cooling with optimum performance.

The core measures 520 mm x 200 mm x 120 mm and features a stepped design with a total volume of 10.4 litres, delivering a 104% larger flow area and 140% more charge air volume compared to the standard Intercooler. The free-form cast aluminium end caps have been designed using CAD software to deliver higher cooling capacity with lower back pressure. Weighing just 7.6 kg, the intercooler remains lightweight. An anti-corrosion coating with excellent thermal conductivity ensures durable and consistent cooling. Installation is plug-and-play as a 1:1 replacement using the original mounting points.

Features

• Improved cooling performance
• 104% larger inlet surface area
• 140% greater charge air volume
• Specially developed high-performance mesh

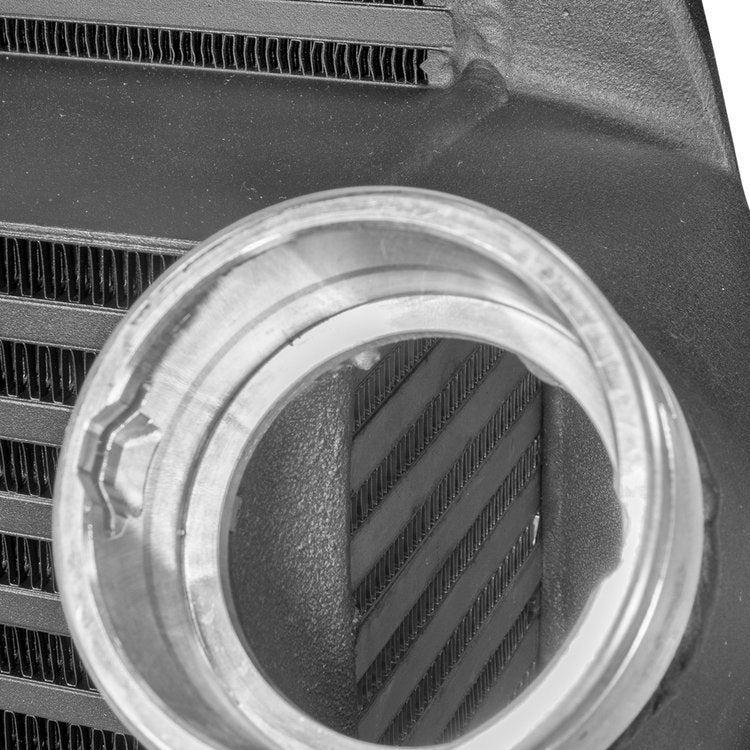

• Free-form cast aluminium end casings (CAD design)
• Lower back pressure
• Anti-corrosion coating with excellent thermal conductivity
• Lightweight: 7.6 kg
• Plug & play 1:1 replacement

Technical specifications

• Vehicle: BMW 116d (1 Series E81/E82/E87/E88, 3 Series E90/E91/E92/E93, X1 E84) with N47D20(TÜ2) and M47 engines
• Core dimensions: 520 mm x 200 mm x 120 mm (stepped design)
• charge air volume: 10.4 litres (+140% compared to OEM)
• Increase in Intake cross-sectional area: 104% compared to OEM
• Weight: 7.6 kg
• End housings: free-form cast aluminium
• Coating: anti-corrosion coating
• Fitting: plug & play (1:1 replacement)

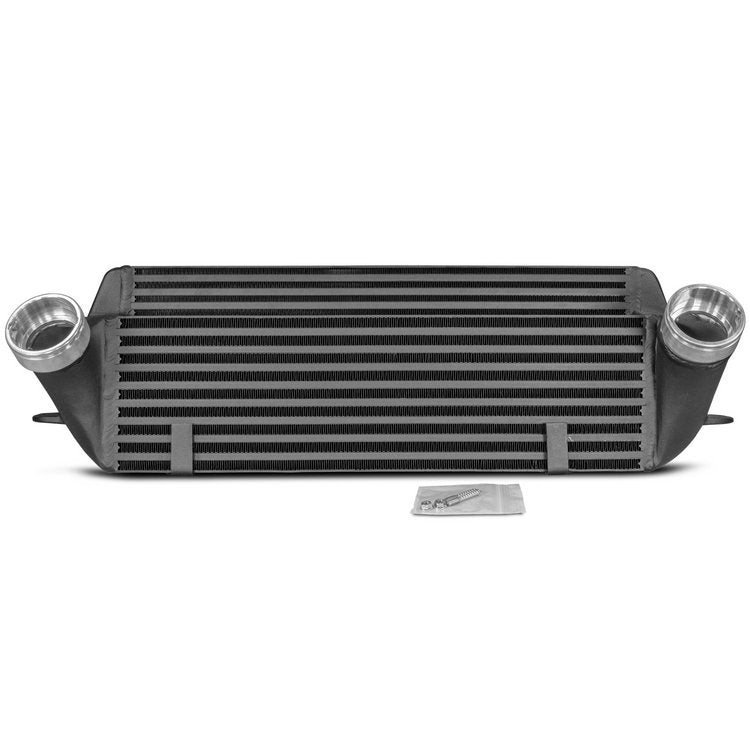

Contents of the set

• Wagner performance Intercooler (black-coated)
• fitting kit
• Installation instructions

Frequently asked questions

Which models is this intercooler kit suitable for?
For the BMW 116d and other models from the 1 Series, 3 Series and X1 with the N47D20(TÜ2) and M47 engines.

How much greater is the charge air volume?
The charge air volume increases by 140% and the flow area by 104% compared to the standard Intercooler.

Is installation complicated?
No, the kit is plug-and-play and is fitted as a direct replacement using the original mounting points.
